– Silent motor system provides a smooth and quiet operation
· Power: 9 Nm
· Speed: 26 rpm
· Power supply: 230V / 50 Hz
· Consumption: 184 W
· Certification: IMQ
– In-ceiling housing manufactured from aluminium
– Lower part of the housing, trap door and bezel sprayed with white epoxy powders (RAL 9010)
– White dowel bar: height 35 mm. – depth 20 mm.
– Two ceiling mounting brackets with four threaded rods 100 cm. long

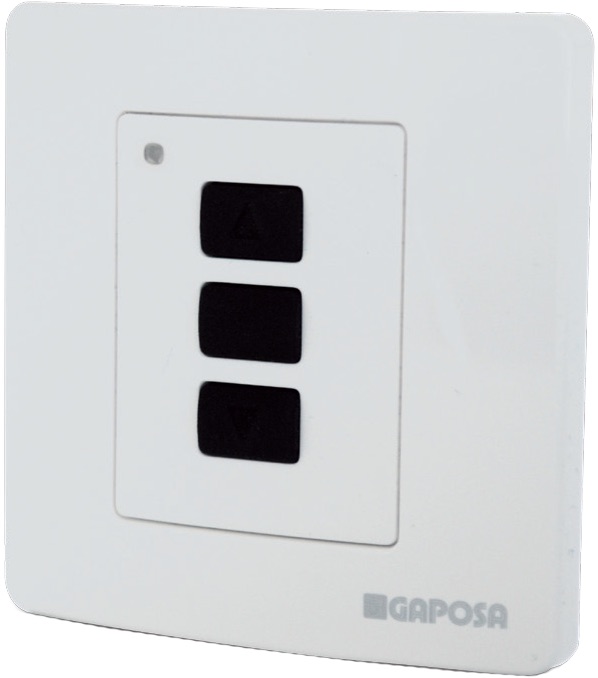

– On/Off switcher included
– Motorized trap door included
– Screen standard supplied with cloth dropping down from the front side of the housing
– Flame – retardant projection surfaces
– Side black borders of 5 cm. and black dowel bar (optional)
– Minimum height needed into the false ceiling: 25 cm.
– Screen housing available in different colours (optional)
