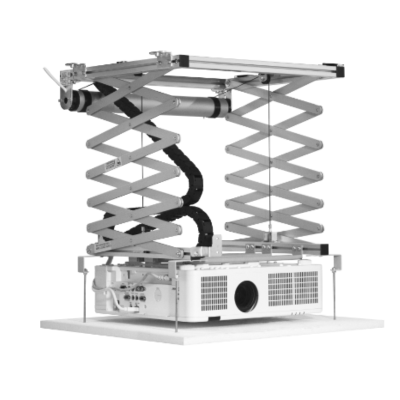

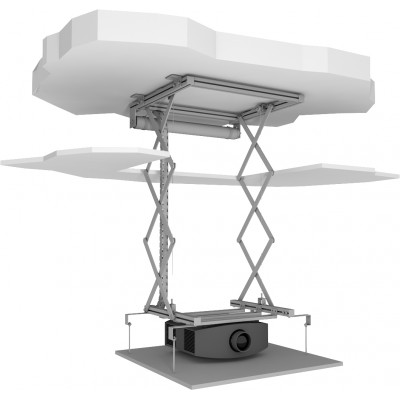

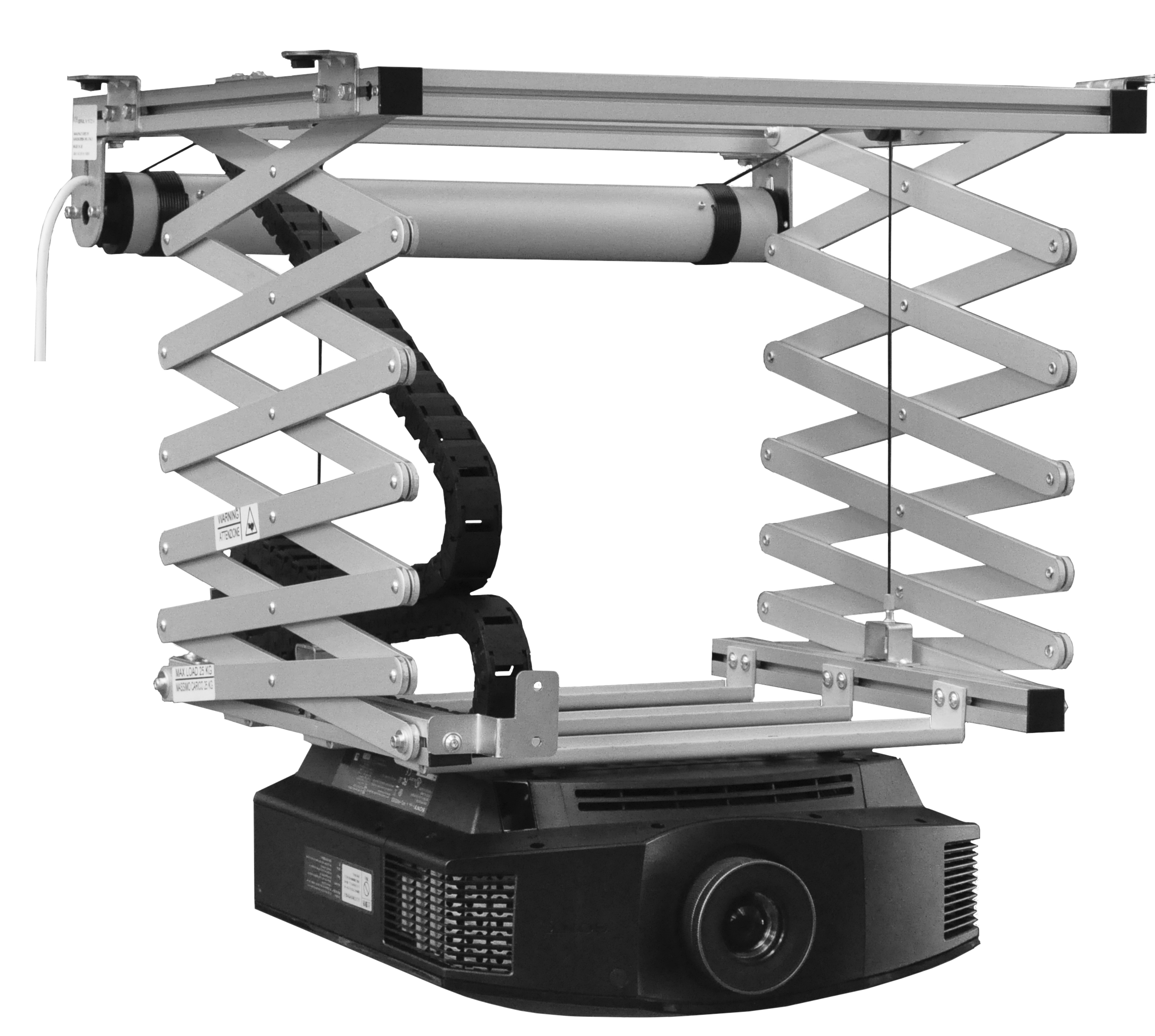

The PROJECTOR LIFT VP225 is studied in order to support large and heavy video projectors up to 30 kg of weight.

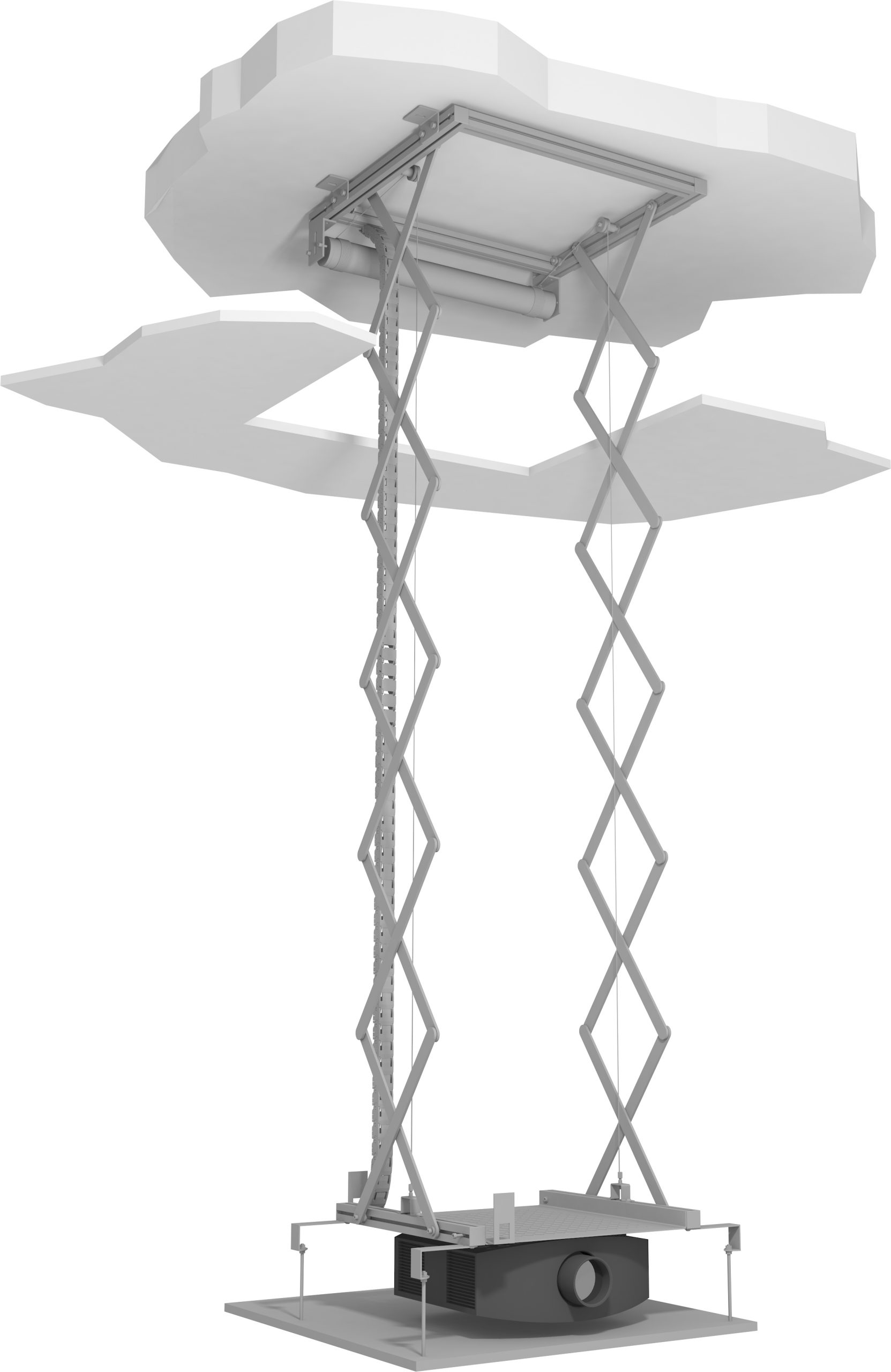

The VP225 is supplied with an extremely silent motor that allows a descent from a minimum of 14,5 cm. to a maximum of 196 cm.

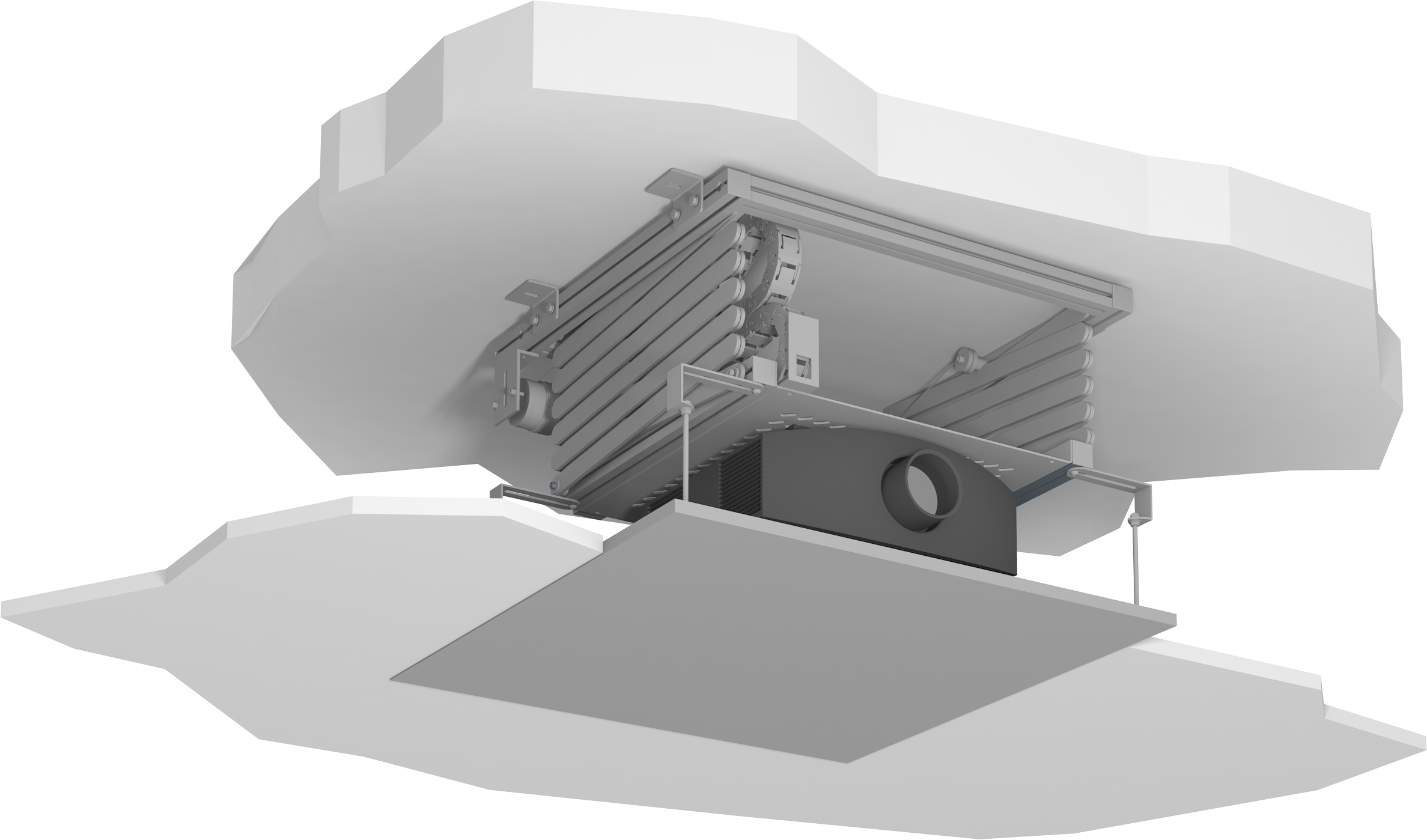

Moreover, it is supplied with extendable side brackets in order to allow an easy fixing of the panel of your false ceiling by adjustable threaded bars. The panel can be mounted under the projector, even if the projector is larger as the lift itself.
The lift VP225 is equipped with two safety screws that prevent the lift to extent further to the preset end stop.

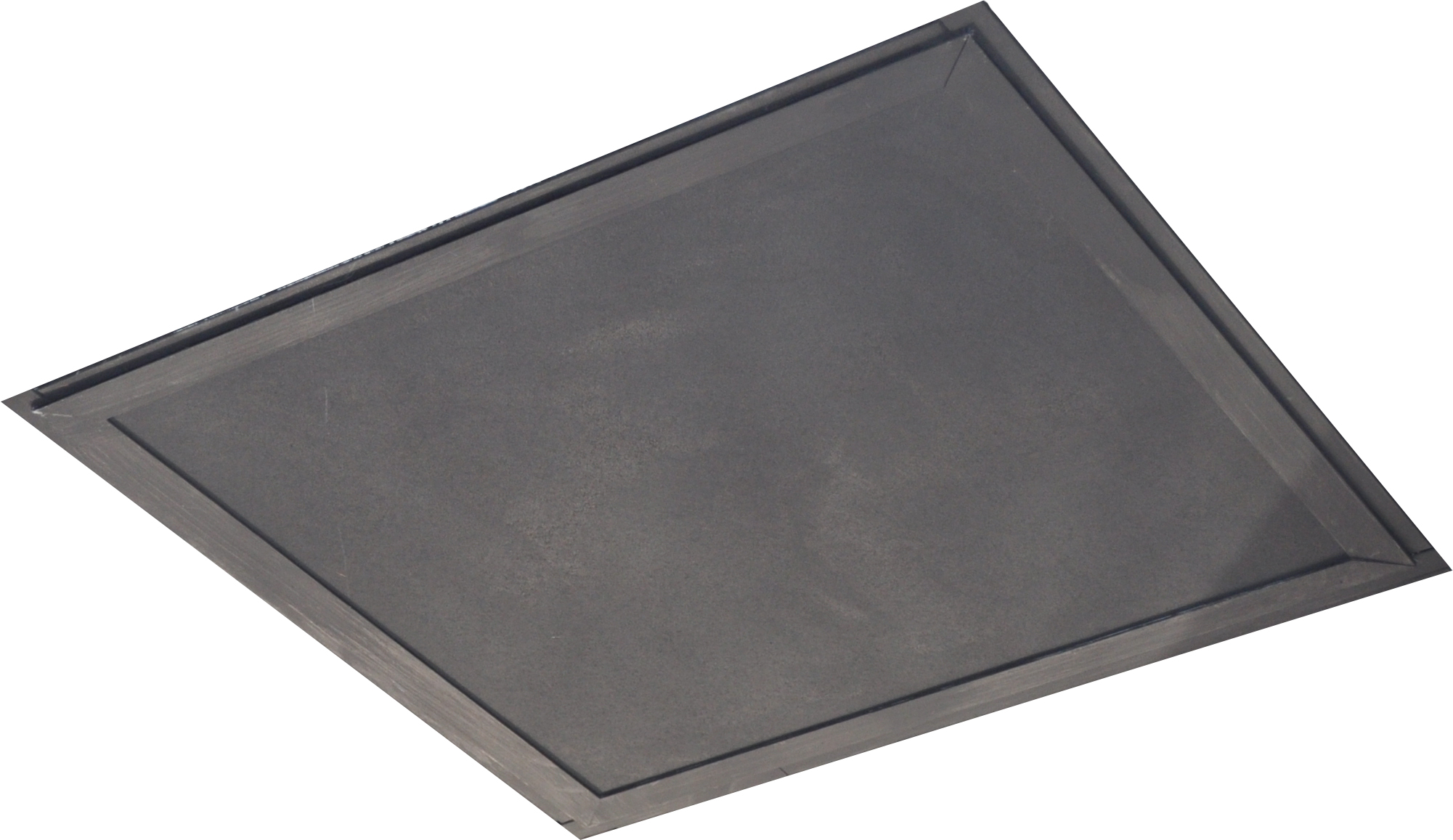

* Ceiling cover plate is NOT included
1 337.00€ excl. VAT
POWER SUPPLY → 220-230V – 50HZ
MAXIMUM CONSUMPTION → 184 W
TORQUE → 20 Nm
MOTOR SPEED → 17 rpm
MINIMUM DIMENSIONS LIFT CLOSED → 575x255x554 (WxHxD in mm)
DIMENSIONS LIFT OPENED → 575x1979x554 (WxHxD in mm)
MAXIMUM SIZE FIXING POINTS PROJECTOR → 398×372 (WxD in mm)
MAXIMUM OVERALL SIZE OF PROJECTOR → 570×600 (WxD in mm)
MAXIMUM LOAD → 30 Kg
NET WEIGHT OF THE PROJECTOR LIFT → 15 Kg
CABLE GATHERING SYSTEM → 20×18 (WxH in mm internal dimensions)
