Download Pdf Data Sheet: AVE4KC30
4K Ultra HD Output
Using a new generation of SONY 1/1.8-inch high-quality CMOS, it can achieve maximum 4K60 ultra-high-definition resolution broadcast and image output, and even larger scene recording.
30X Optical Zoom Lens
Equipped with a 30x ultra-high-definition optical lens and supports the mainstream horizontal viewing angle of 59°, can meet the needs of more scenes such as video conferencing in large auditoriums and blackboard writing in lecture theaters to restore true details.

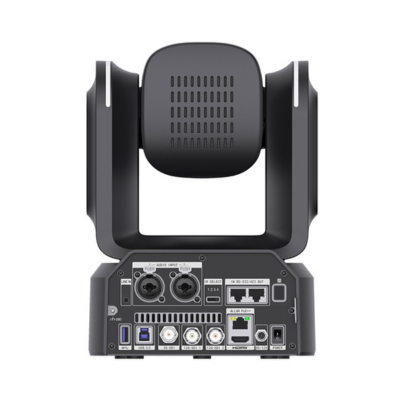

USB3.0+HDMI+LAN+SDI Full interfaces, Rich Application Scenarios
A rich array of video output interfaces, HDMI+USB3.0 Type-B+12G-SDI+LAN can simultaneously output 4K60 resolution, while 3G-SDI supports 1080p60 resolution output. All interfaces can output simultaneously.
Low Light
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. At the same time, 2D & 3D digital noise reduction is applied to significantly reduce image noise. Even under ultra-low light conditions, the image can still be kept clean and clear, and the image signal-to-noise ratio is higher than 50dB.
Infrared Remote Control Signal Transparent Transmission Function
In addition to receiving its own infrared remote control signals, it can also receive signals from user’s infrared remote control and send them to the video conferencing terminal through the VISCA port.
Multiple Video Compression Standards
Different interfaces support multiple video compression formats such as YUY2, H.265, MJPG, and H.264.
Multiple Network Protocols
Supports ONVIF, SRT, RTSP, RTMP, Free D, NDI®|HX and other network protocols.
* Free D protocol is being continuously updating, please refer to the shipping version.
Multiple Control Protocols
Supports VISCA (including VISCA Over IP), PELCO P/D, NDI® protocols, and automatically identifies protocols.
Next-generation Human and Facial Recognition Tracking Algorithm
Supports intelligent tracking, automatic framing, and gesture recognition functions. It enables control through five types of gestures, such as activating/deactivating intelligent tracking and automatic framing, switching tracked targets using gestures, customizing tracking sizes, and zooming in/out the lens through gesture control.
