Download Pdf Data Sheet: AVE4KC10
- 4K Ultra-high-definition
Applied SONY 1/2.8-inch 8.5 million high-quality CMOS image sensor with 8.29 million effective pixels, it can realize the maximum 4K30（3840×2160）ultra-high-definition resolution image output.
- 20x Optical Zoom
Equipped with a 20x optical telephoto lens, supports the mainstream horizontal viewing angle of 58.7°, satisfying video conferencing in large halls, blackboard writing in lecture halls.

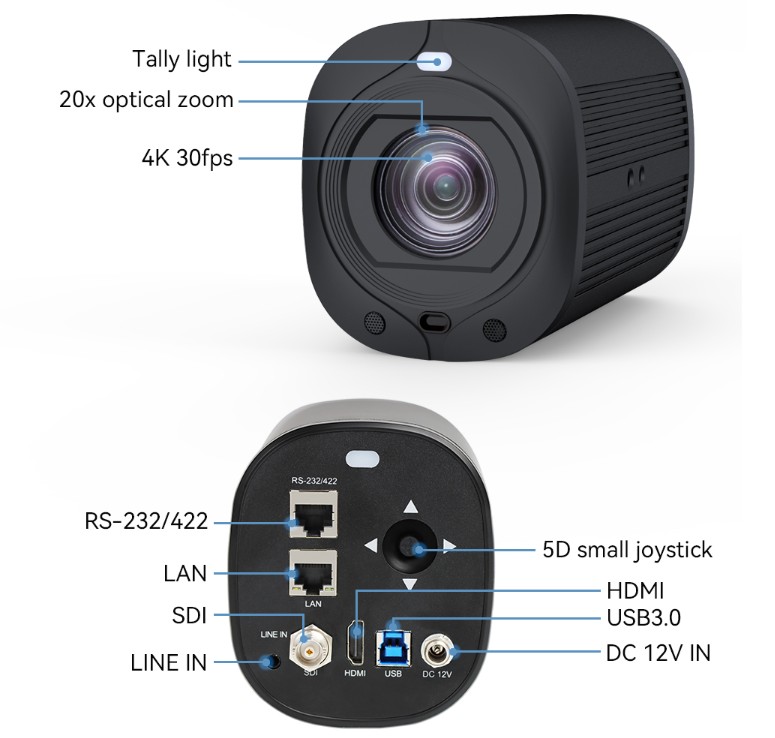

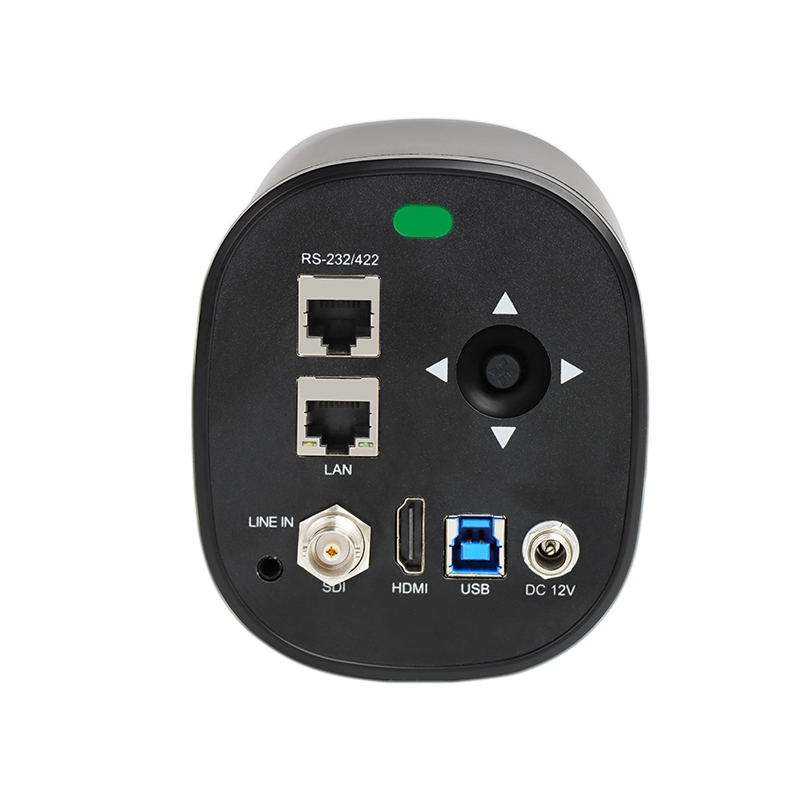

- USB3.0+HDMI+IP+3G-SDI Full Interfaces
Compatible with mainstream video output interfaces.
Default version: HDMI+LAN can output 4K30 resolution at the same time.
Optional version: HDMI+USB3.0 can output 4K30 resolution at the same time.

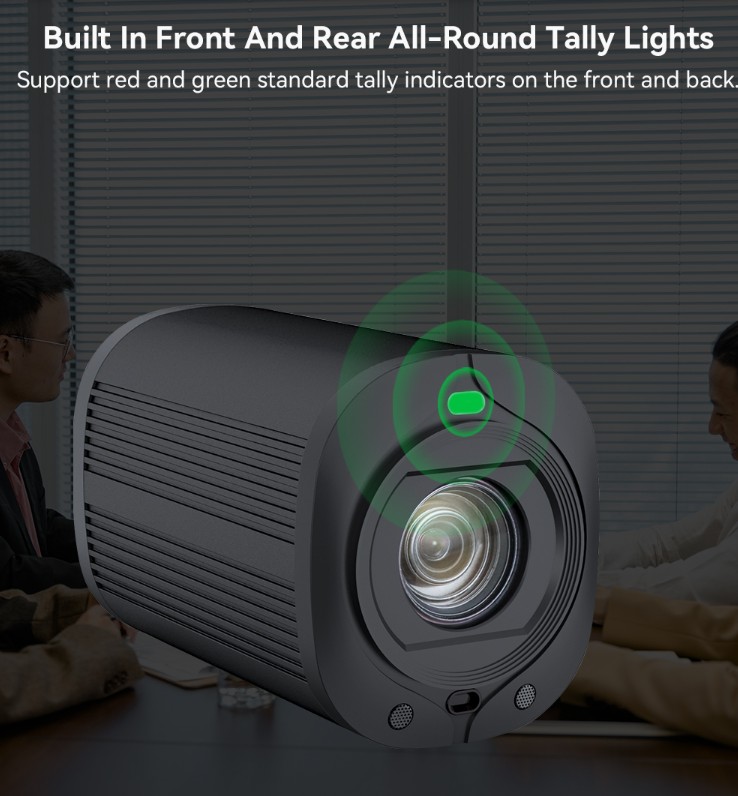

- Built-in Front and Rear All-round Tally Lights
Supports red and green standard tally indicators on the front and back.
- Low Light
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. 2D&3D digital noise reduction reduces image noise. In ultra-low light conditions, the picture can still be clean and clear, S/N Ratio of the image is higher than 50dB.
- 2.4g Remote Control Signal
2.4g remote control signal, achieves ultra-long-distance control.
- Various Video Compression Standards
Different interfaces support YUY2, H.265, MJPG, H.264 multiple video compression formats.
- Various Network Protocols
Supports ONVIF, SRT, RTSP, RTMP and NDI® HX2 ect.
- Multiple Control Protocols
Supports VISCA (including VISCA Over IP), PELCO P/D protocol, NDI®; automatically identify protocols.
- Rear Multi-dimensional Remote Control 5D Small Joystick
